Electrical Specifications
- Frequency
- 2400 ~ 2500MHz & 5150 ~ 5850MHz
- Gain (Peak)
- 2.23 dBi @ 2400 ~ 2500MHz
- 4.61 dBi @ 5150 ~ 5850MHz
- Efficiency (Peak)
- 64.31% @ 2400 ~ 2500MHz
- 50.70% @ 5150 ~ 5850MHz
- VSWR
- <1.83 @ 2400 ~ 2500MHz
- <1.91 @ 5150 ~ 5850MHz
- Polarization
- Linear
- Impedance
- 50Ω
Mechanical Specifications
- Dimension
- 31(L) x 15(W) x 0.4(T) mm
- Connector
- IPEX or Other RF Connectors
- Cable
- OD1.13 or other RF cable
- Mounting
- 3M Double-side adhesive
- Operation Temperature
- -30° ~ +70°C
- Storage Temperature
- -30° ~ +75°C
- RoHS
- Compliant
Product Description
Santa Fe WF-P1H supports whole Wi-Fi bands, including the latest IEEE 802.11ax standard. The IEEE 802.11 defines the technical specifications of the wireless LAN standard. The IEEE 802.11ax standard for high efficiency (or HE) covers MAC and PHY layer operation in the 2.4 GHz, 5 GHz and 6 GHz bands.

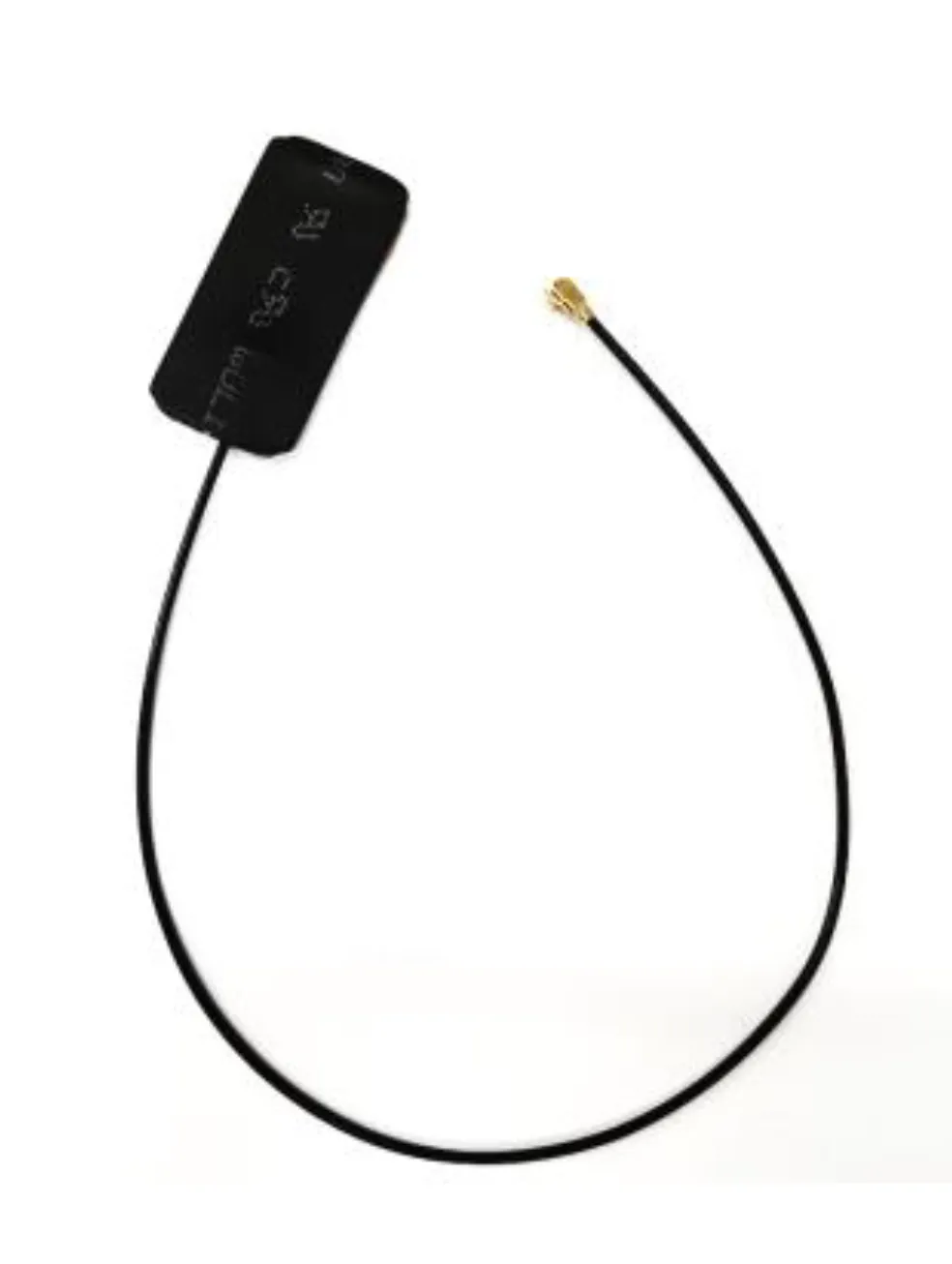

The PCB antenna goes with coaxial cable terminated with iPex or required connector and is easy to be placed inside the enclosure of the wireless devices.
Highlight
- Support dual band Wi-Fi frequency
- Cable and connector are optional.
- RoHS compliant
- Compact design
| Matched to Radio Modules from | Sierra Wireless, Telit, Huawei, Gemalto, uBlox, ZTE, and others. |
|---|
