| Frequency | LTE: 698~960 & 1710~2170MHz |
|---|---|
| WiFi | 2400-2500 & 5150-5850MHz |
| GPS L1 | 1575.42 ± 1.023MHz |
| GLONASS L1 | 1602 + 0.5625 * K (MHz) |
| Dimension | 80 (dia.) x 47mm |
| Connector | SMA Plug (other RF connectors available) |
| Enclosure | ASA (Acrylonitrile Styrene Acrylate) |
| Gain | 698~960MHz: 1.2dBi |
| 1710~2170MHz | 7.31dBi |
| WiFi | 2.4dB & 5.33dB (peak) |
| GPS/GLONASS | 28 ± 2dB |
| Mounting | Screw Mount |
| Ingress protection | IP67 |
Product Description

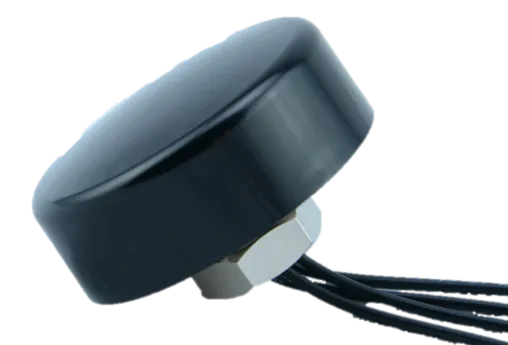

T7-GLW-C is a rugged combination antenna of GNSS, WiFi, and telecom LTE bands, which features excellent GPS /GLONASS signal quality, WiFi, and MIMO LTE coverage. With anti-UV material and water ingress design, the combo antenna is easy to install and able to meet both commercial and industrial standards.
Highlight
- Central screw mount, easy installation
- Zinc alloy die casting antenna base.
- IPX7 Waterproof
- Support GPS/GLONASS, WiFi 2.4/5.8GHz and MIMO LTE
- RF independent grounded
| Application flexibility | 1 lead, 2 leads, 3 leads, 4 leads, and 5 leads version optional (1xGNSS, 2xLTE, 2xWiFi) |
|---|
