| Frequency | 698-960MHz & 1710-2170MHz |
|---|---|
| Dimension | 48mm(dia.) x 64mm |
| Connector | SMA Plug (other connectors available) |
| Gain | 1.32 dBi @ 698~960MHz3.86 dBi @ 1710~2700MHz |
| Efficiency | 70.24% @ 698~960MHz66.61% @ 1710~2700MHz |
Product Description

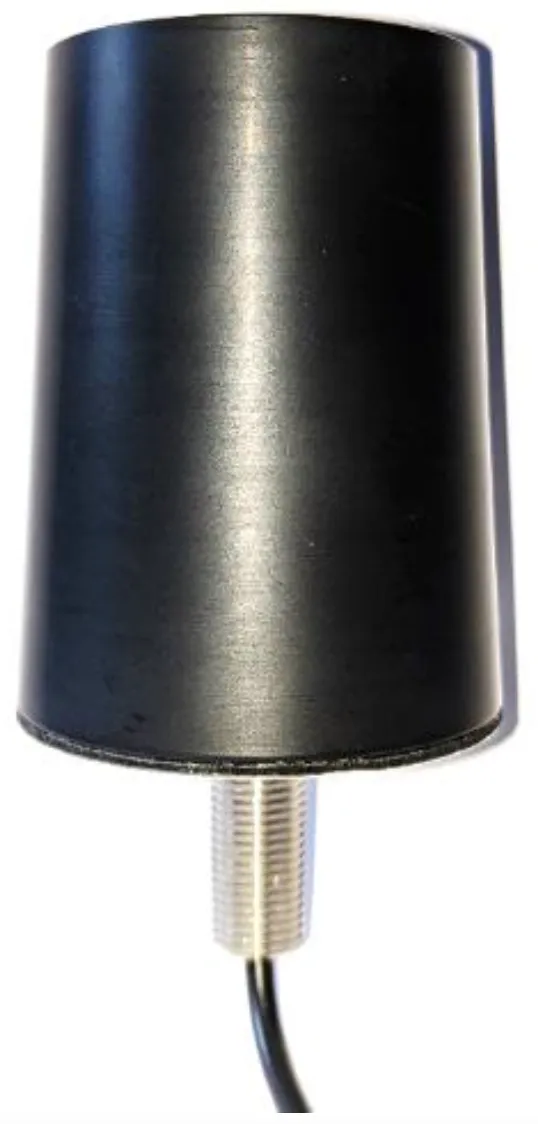

The LE-Q6C is a compact, rugged and low profile industrial-grade antenna with the coverage of 2G/ 3G/ 4G bands. It’s mounted to the surface by a 3M tape attached at the antenna bottom. A ground is required to have the best RF performance. Customized spec is available.
Highlight
- Compact design combined with high performance antenna element.
- Low profile design, only. 64MM antenna height.
- Cable direct entry through a cable terminated by a RF connector is optional.
- Ground plane is mandatory.
